Step-by-step process of performing a seamless repair on a chipped large Italian platter using the best commercially available materials including cementing, filling, painting, and glazing. This process can apply to chipped plate, chipped vase, bowl, pitcher, figurine or any pottery, china or ceramic vessel.

What Will You Need | Cementing

1. Two-part clear 5 min Clear epoxy
2. Wooden stick, or a pin-tool

3. A container with pvc pebbles or rice
4
. Razor blade
5. Denatured or 91% Alcohol
6. Paper pad to mix Epoxy on
7. Good light
8.
Protective eye wear

Where to get supplies


IMPORTANT: Ceramic restoration materials are not food-safe, liquid or heat-proof (over 190 degrees F) and repaired items should not be used on cooking or food serving ware more...


What glue and tools to use to fix chipped pottery or figurines?

Cementing Ceramic Broken Pieces

Broken ceramic italian platter
Make sure the pieces are clean using alcohol. If the item has been fixed before clean off any old adhesive, or the new adhesive may not bond properly. Instruction to remove old adhesives.

two-part 5-minutes epoxy - pc clear

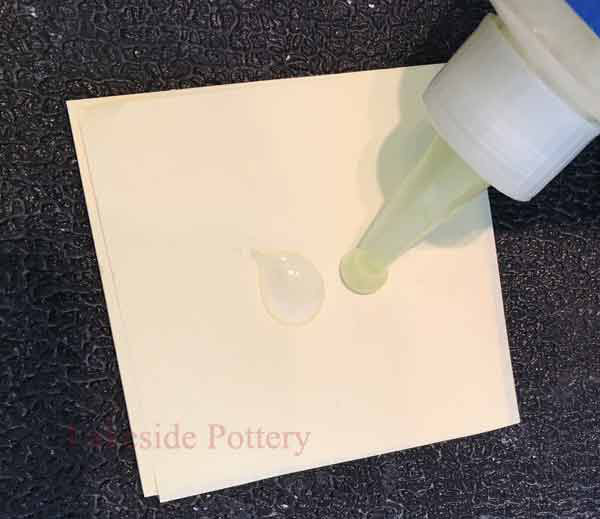

Place even amounts of 5-minutes clear epoxy on a paper or cardboard pad

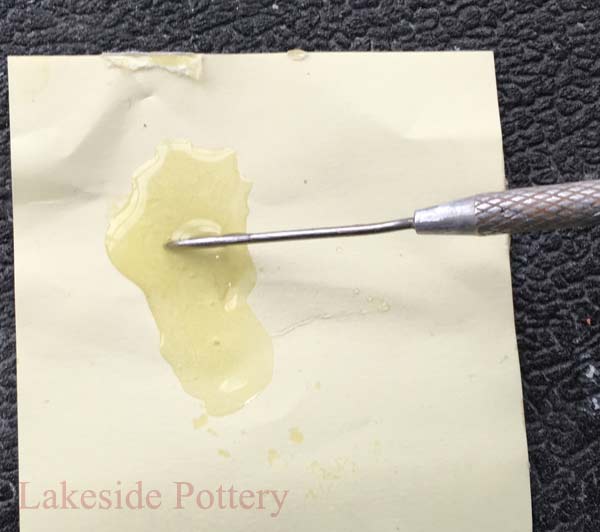

Mix the two parts epoxy
Mix epoxy well with a pin tool, paper clip or a wooden stick.

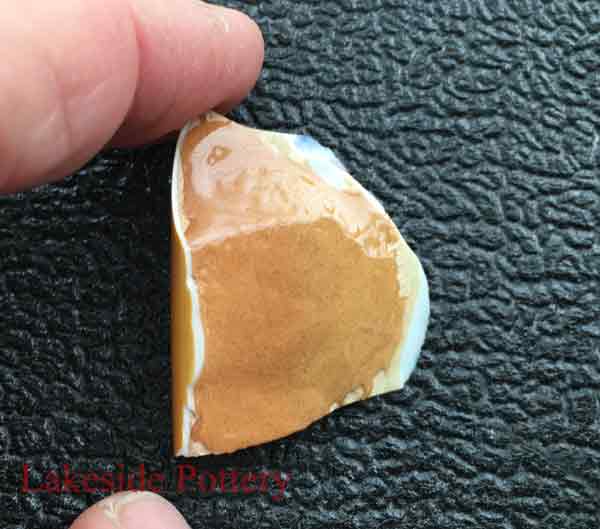

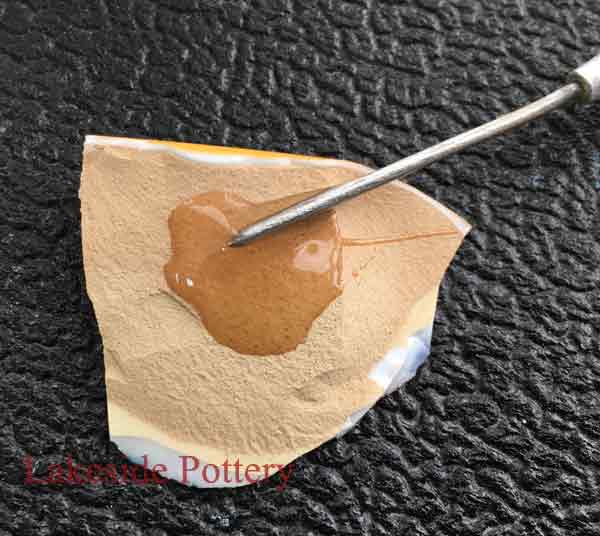

Apply the epoxy to one side
Apply epoxy mix to one side using a pintool or a wooden stick

Applying the epoxy onto one side
Use only enough adhesive to cover the edge. Too little will leave gaps, resulting in a weak repair

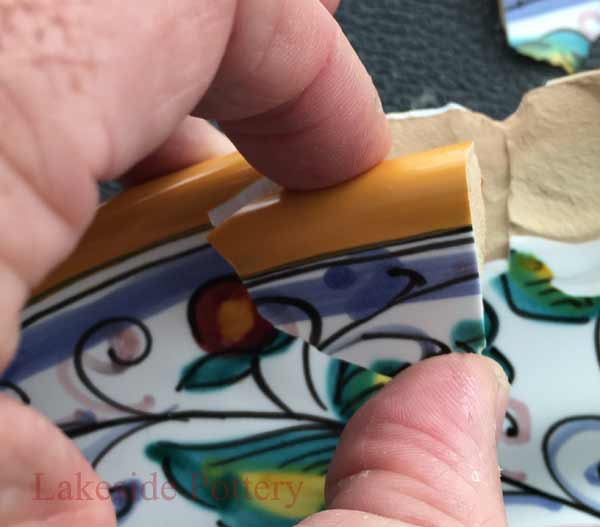

Apply pressure
Place broken piece over the epoxy. Important: You have only about 60-90 seconds from start of epoxy mixing to complete the broken piece's permanent placement before the epoxy becomes gummy and not workable

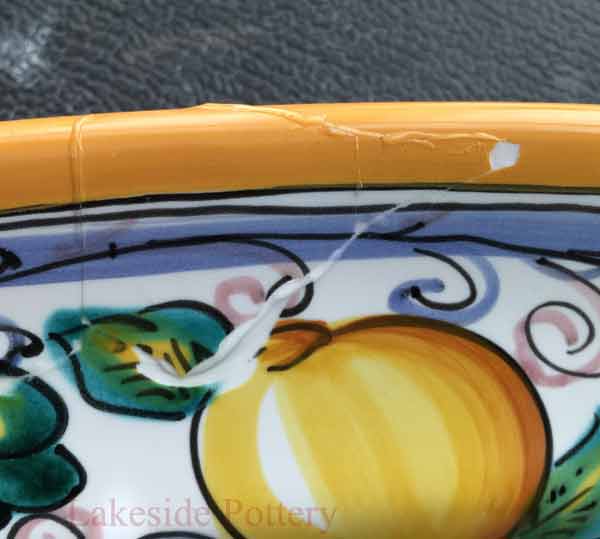

Let the epoxy cure before cleaning excess cured glue
Quickly join the pieces together while applying light pressure to squeeze extra epoxy out. You only have about 60–90 seconds from start of epoxy mixing to placement before the epoxy becomes gummy and unworkable. Do not wipe off the squeezed-off epoxy to avoid smearing.

Continue cementing the next part
If your item is broken to more than a couple of pieces, plan the attachment sequence to avoid being left with a final piece that cannot be easily attached or fit in. Numbering the pieces after a dry run is a good idea and will assist in the actual implementation.
do not wipe off squeezed glue

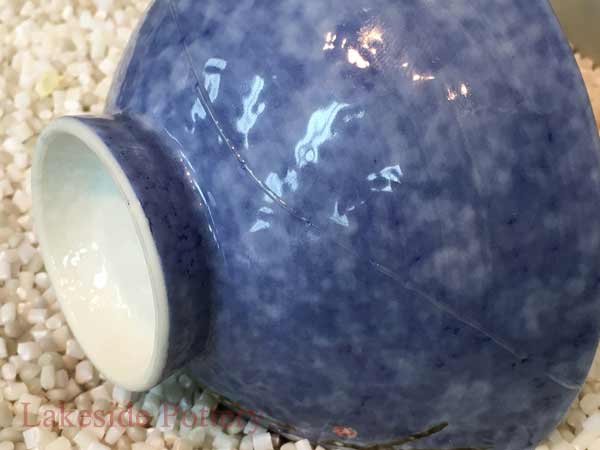

Verify that pieces can stay steady during the cure period (let it cure at 75 degrees F or warmer)

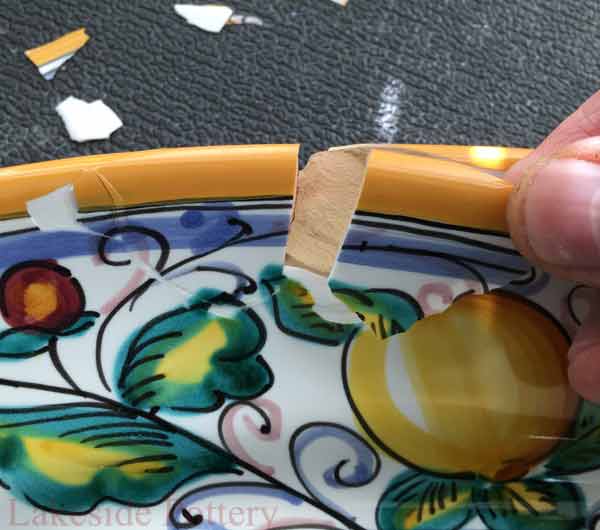

Verify fit of next piece
Verify fit with next piece. Immediately after applying the previous piece, if epoxy squeezes out into the next piece space, clean it with the pin tool and alcohol to insure it will not interfere with subsequent pieces proper fit

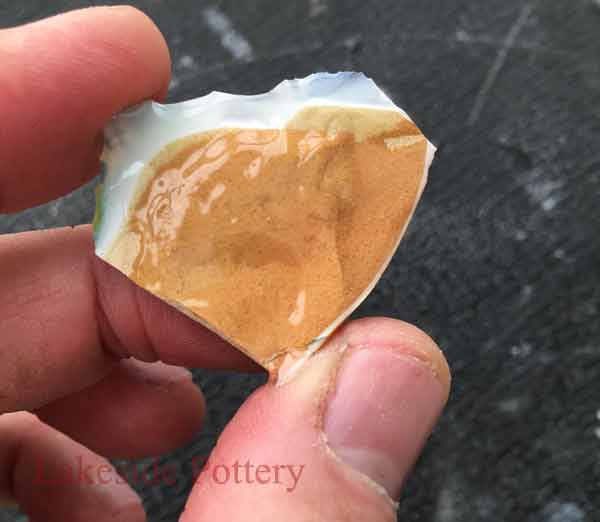

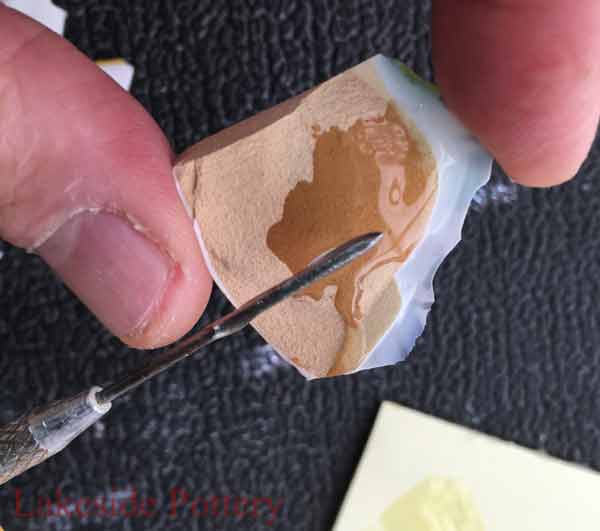

Apply epoxy


Spread epoxy

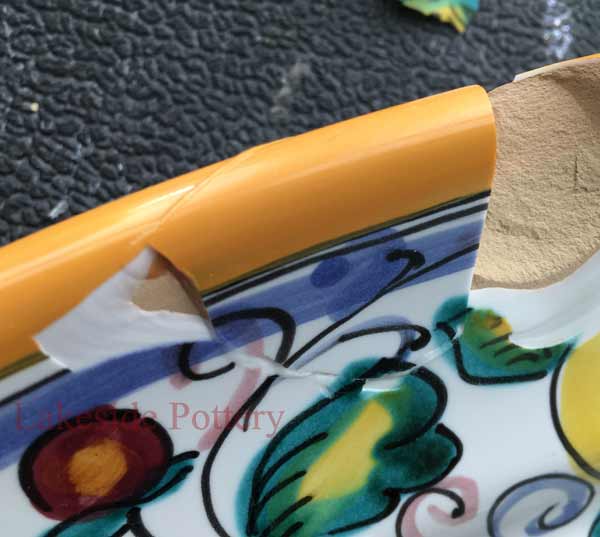

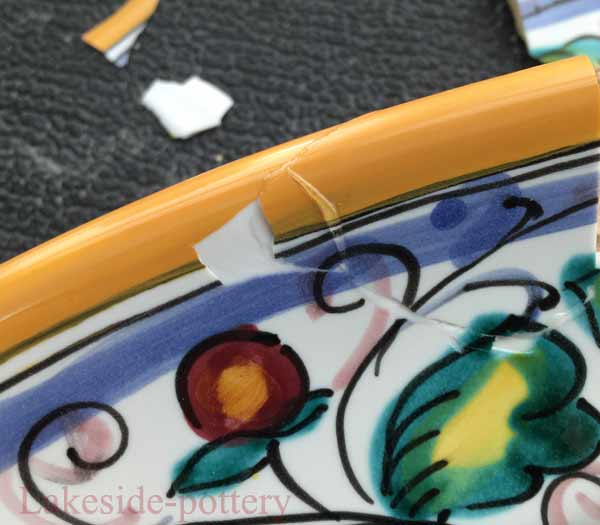

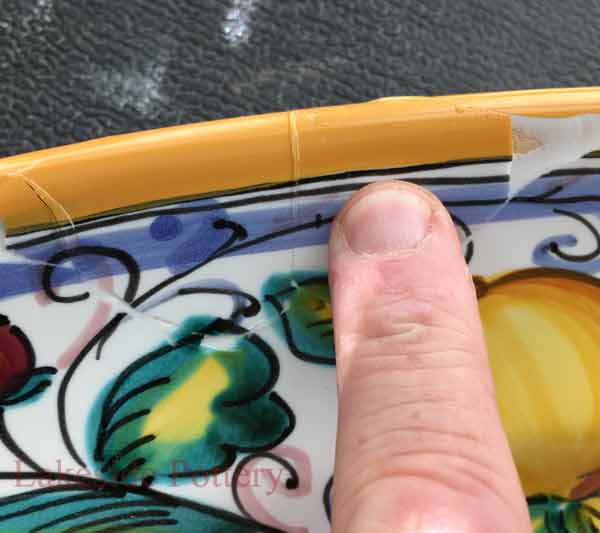

Push hard to squeeze out epoxy

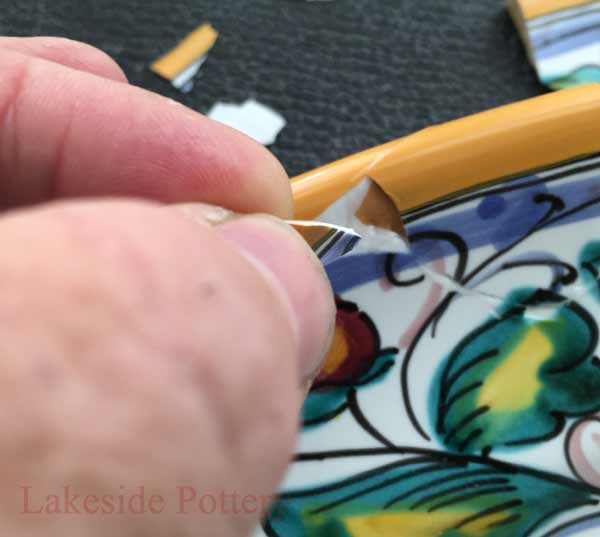

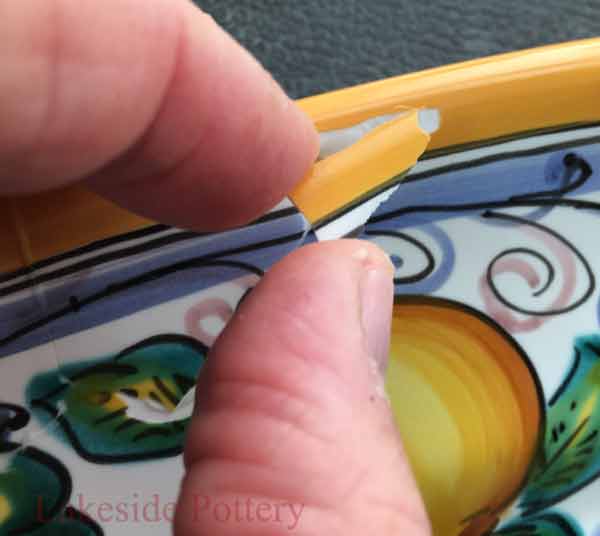

Apply next pieces

Wait 15-20 minutes before addressing the other side
Wait 15-20 minutes before addressing the other side

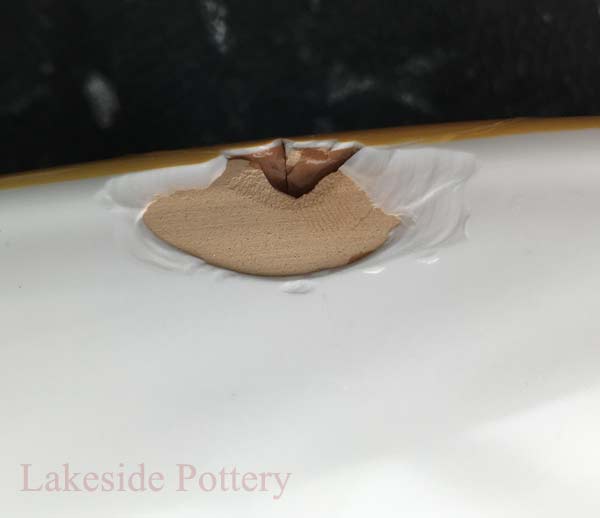

Other side remaining damage
Other side remaining damage

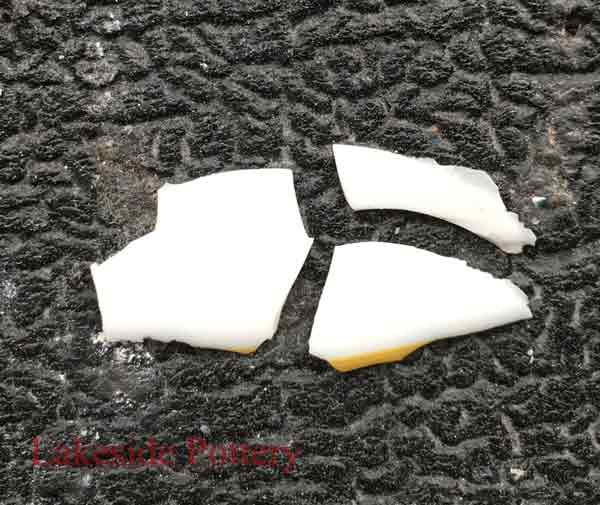

Rear side pieces
Rear side pieces

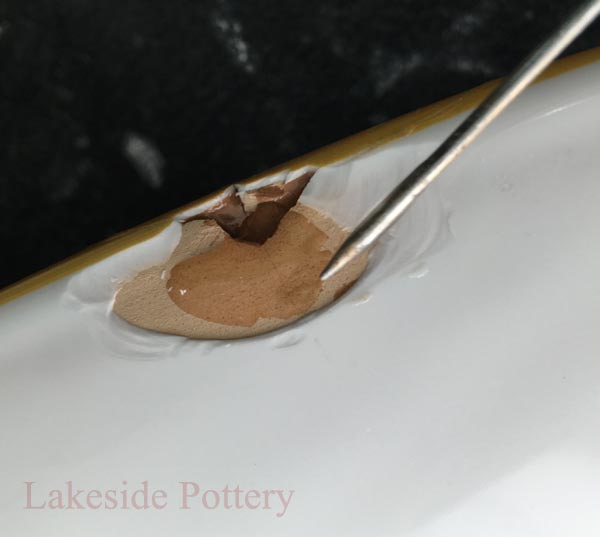

Apply epoxy
Apply epoxy

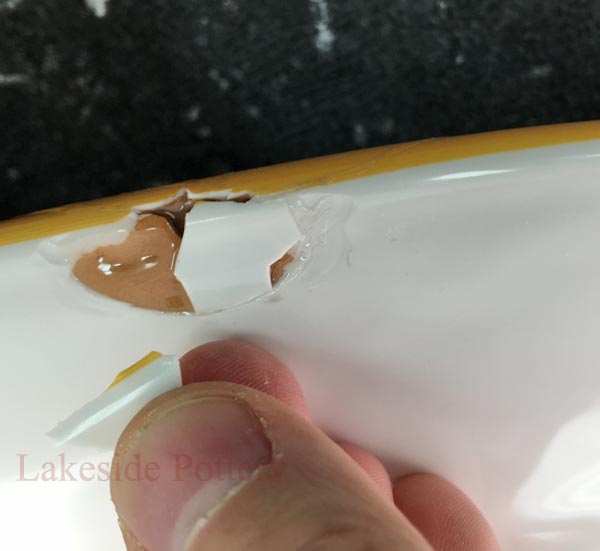

Place pieces
Place pieces

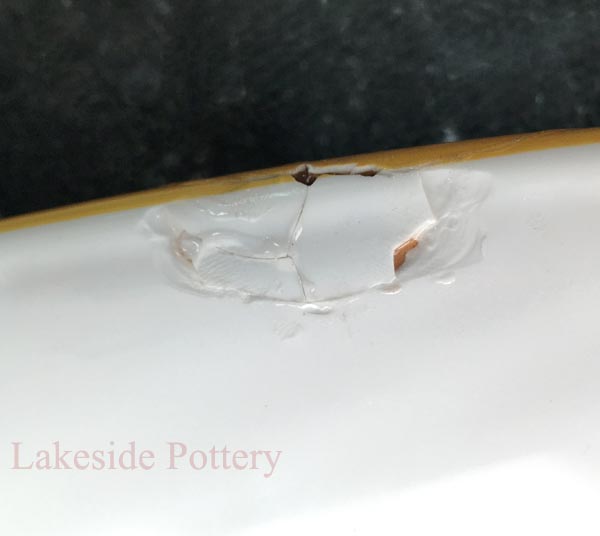

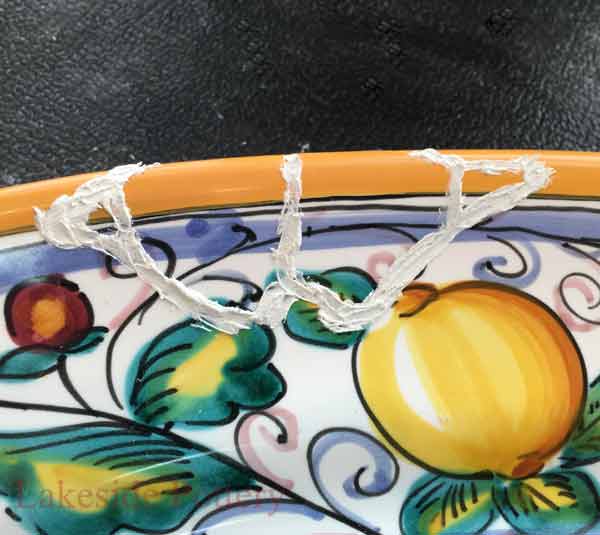

Wait 1-2 hours before clearing squeezed epoxy
Wait 1-2 hours before clearing squeezed epoxy

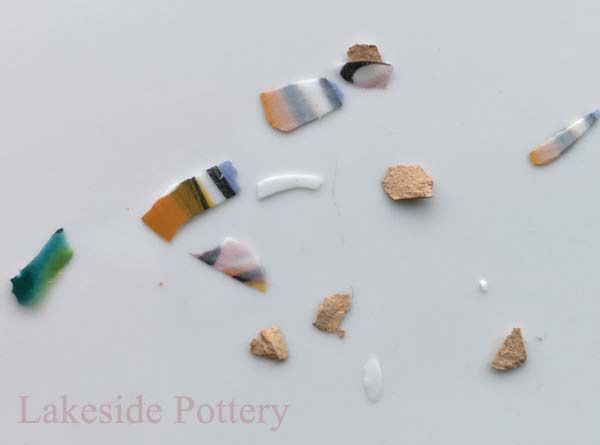

Toss away small pieces
Small pieces are not used and can be thrown away

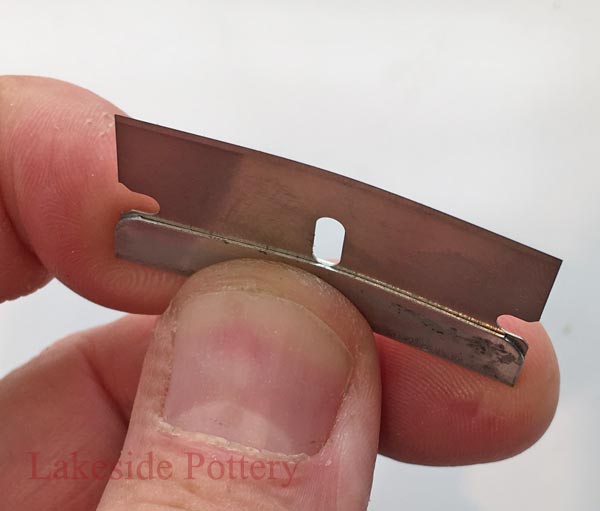

Bend blade - wear protective eyewear
Bend blade for better access clearing unwanted cured epoxy.
Warning - wear protective eye wear

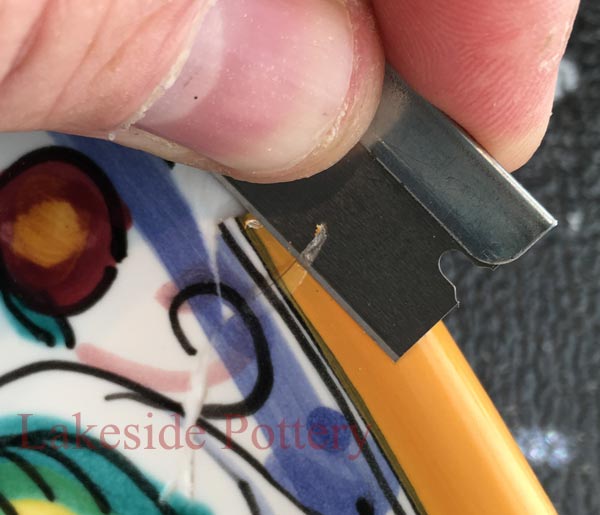

Remove excess glue
Let the epoxy cure for 60 or more minutes before removing excess cured epoxy with a blade

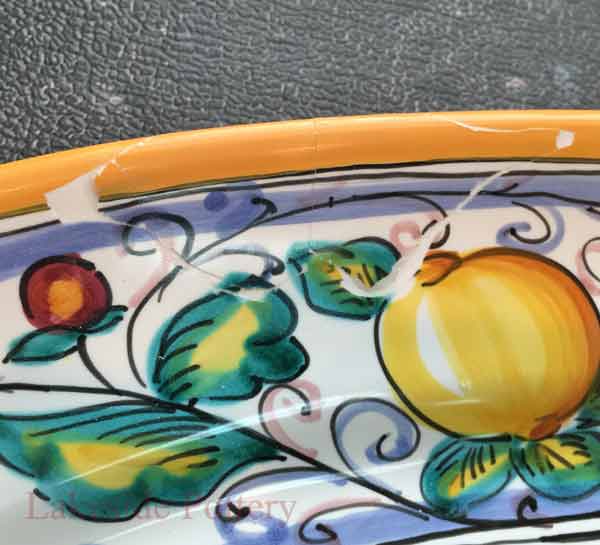

Ready for a PC-11 filler
Ready for filler

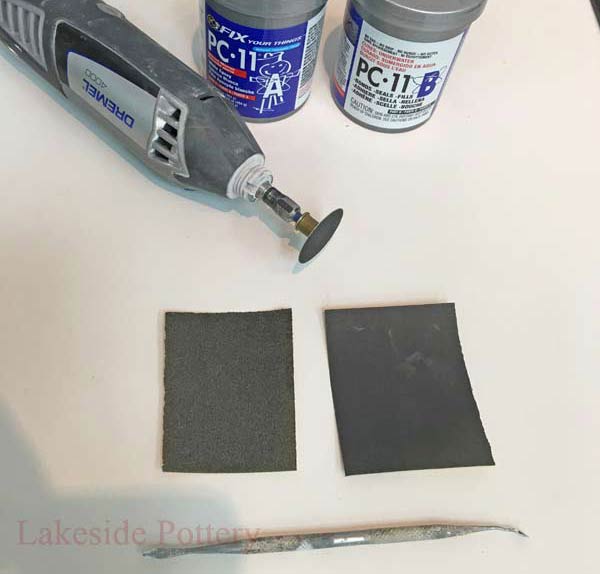

What You Will Need | Filling and sanding


1. Two parts Epoxy filler PC-11
2. Dremel with EZ lock 120 grit disc
3. 220 grit sand paper
3. 400 grit sand paper
4. Rag
5. Mini Spatula

6. Paper pad to mix Epoxy on
7. Denatured or 91% Alcohol


Where to get supplies

IMPORTANT: Ceramic restoration materials are not food-safe, liquid or heat-proof (over 190 degrees F) and repaired items should not be used on cooking or food serving ware more...
What is needed to fill cracks and repair lines


Filling, Sanding and Surface Preparation

Use 91% alcohol for clean up removing dust and oil
Wipe all surfaces with a 91% alcohol to remove dust and hand oils prior to applying filler epoxy

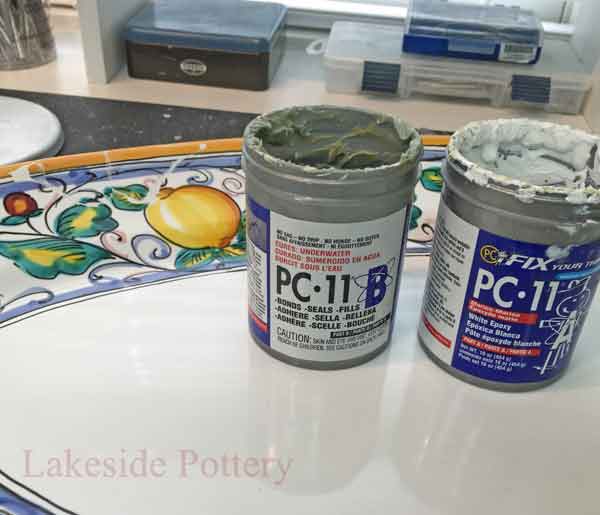

Use Pc-Epoxy pc-11 epoxy filler.  Mix even parts of PC-11 epoxy filler
Mix even parts of PC-11 epoxy filler. For ease of application, work in room temperature of 75 degrees F or warmer. We place the PC-11 in a small heater and keep it at 100 degrees F.

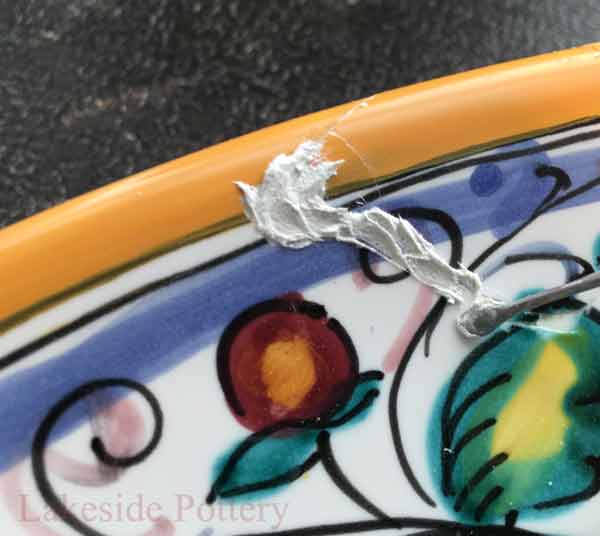

Apply thin layer of filler while pushing in to fill cracks and missing fragments
Apply thin layer of filler while pushing in to fill cracks and missing fragments

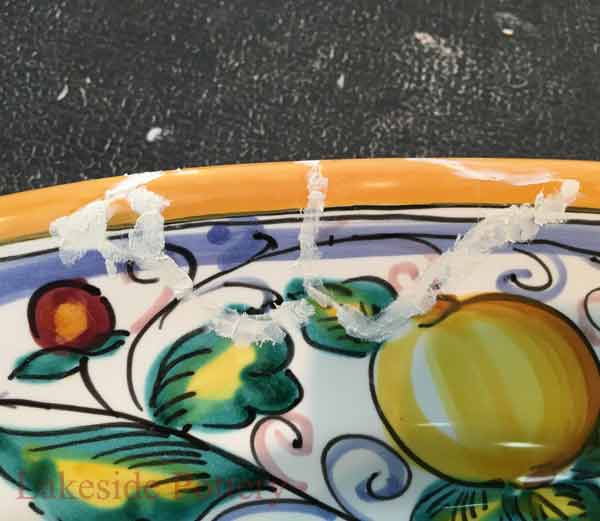

Allow filler epoxy to cure for 12-24 hours
Allow filler epoxy to cure for 12-24 hours (or longer) at a temperature of 75 degrees F or warmer. We place our filled projects in a 140 degrees F oven over night.

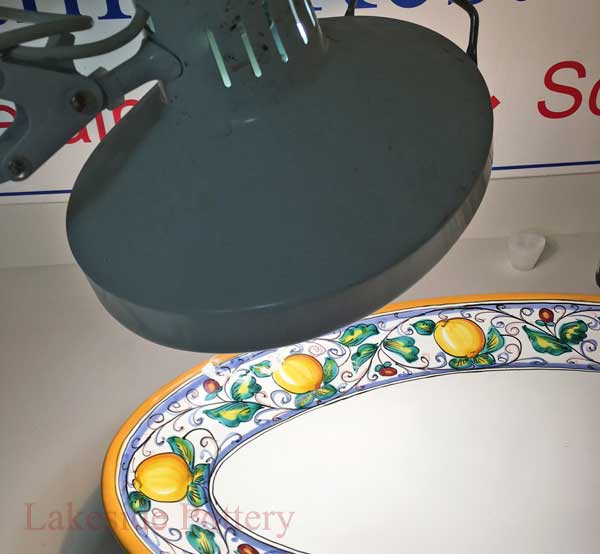

Can heat under a lamp
Placing under a lamp is another good option to optimize hardness for better sanding performance. Place at least 12" away from repair item to avoid overheating.

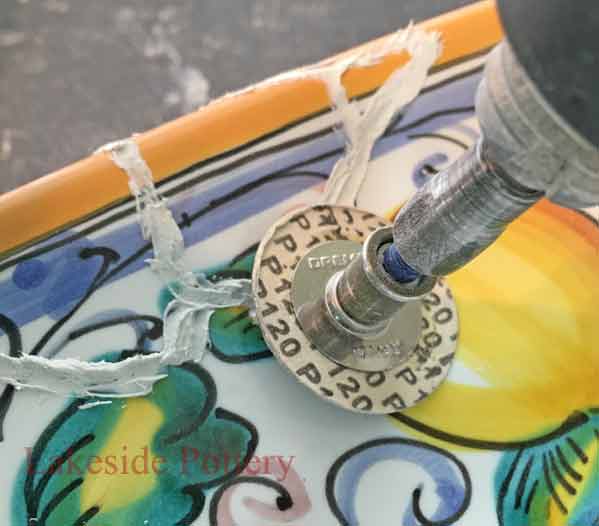

Use Dremel EZ lock sanding disc 120 grit
Use Dremel EZ lock sanding disc 120 grit for sanding.

sand excess epoxy PC-11
Use low speed to avoid burn marks and apply light pressure. Leave the last 10% or so for sanding by hand.
Warning - wear protective eye wear


refine sanding
If Dremel is not available, sanding the whole job by hand (using grit 220 sandpaper) will take longer but will yield the same results

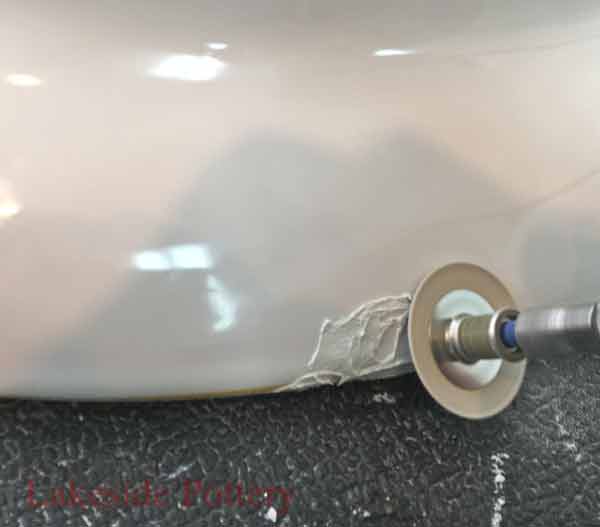

repeat the above on other side
Repeat process on platter's other side

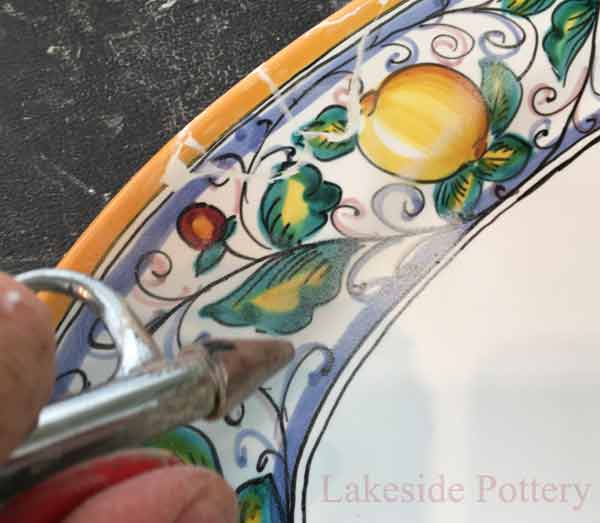

Remove dust
Blow or wipe dust away

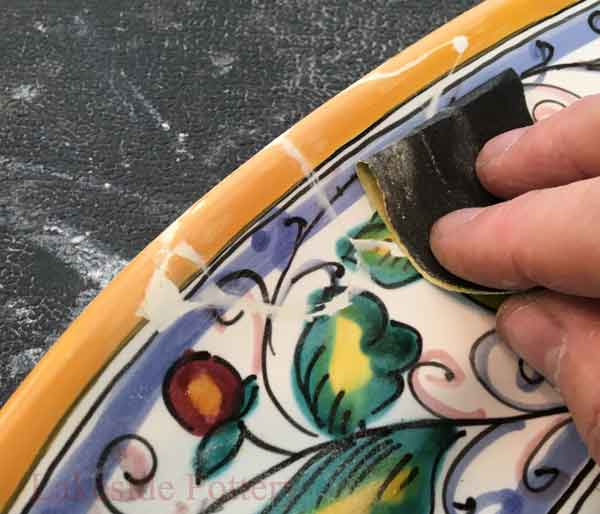

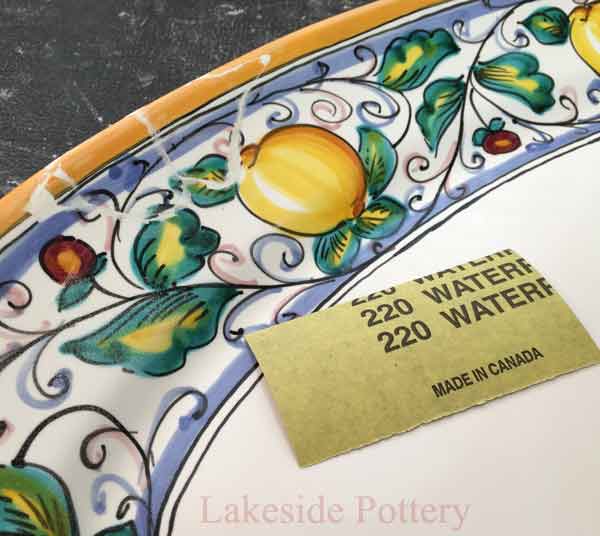

ontinue sanding by hand using grit 220
Continue sanding by hand using grit 220
Apply long strokes for accurate surface continuity
Apply long strokes for accurate surface continuity

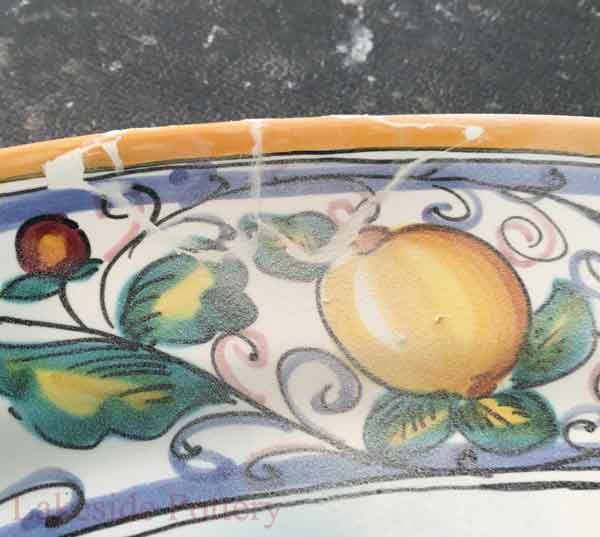

If upon inspection, missed cracks are found, repeat the steps above for the selected areas

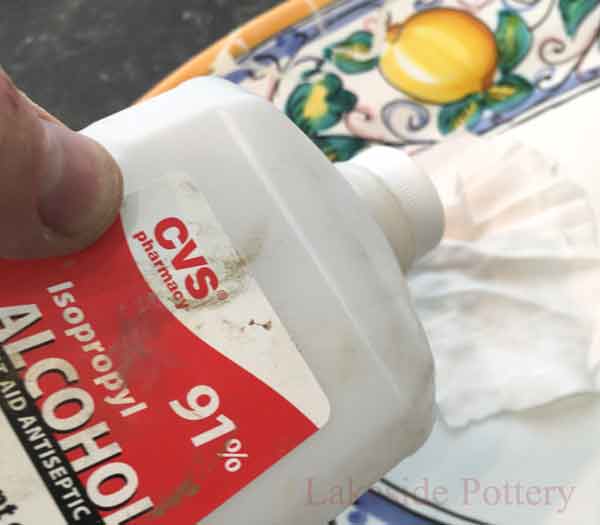

Use 91% alcohol for clean up
Use 91% alcohol for clean up

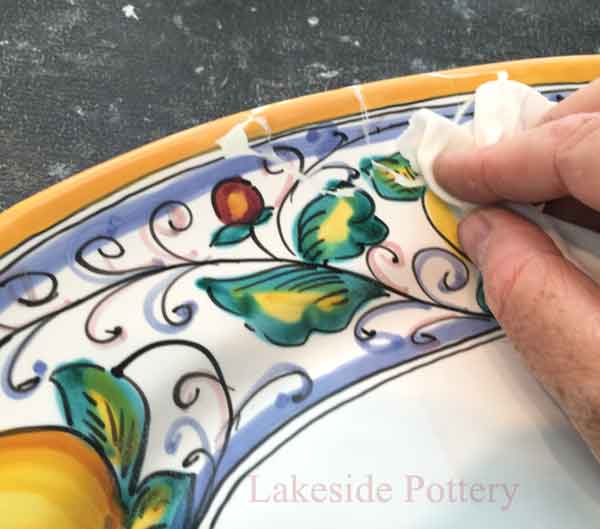

Wipe for any dust or oil
Wipe for any dust or oil

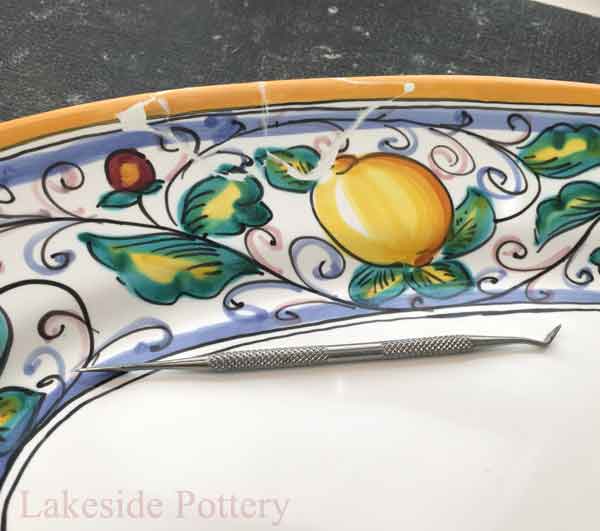

Use a small sepulcher tool to apply filler
After the first round of sanding, a second finer filling is required using a small sepulcher tool

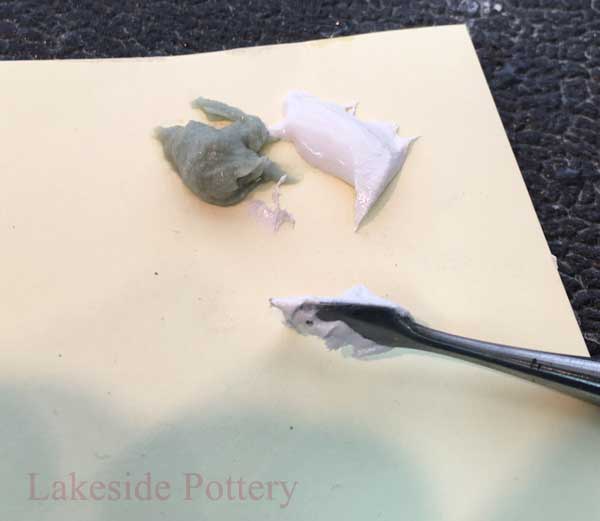

Same filler (PC-11) is used for second application
Same filler (PC-11) is used for second application

Mix well the epoxy filler two even parts
Mix well the epoxy filler two even parts

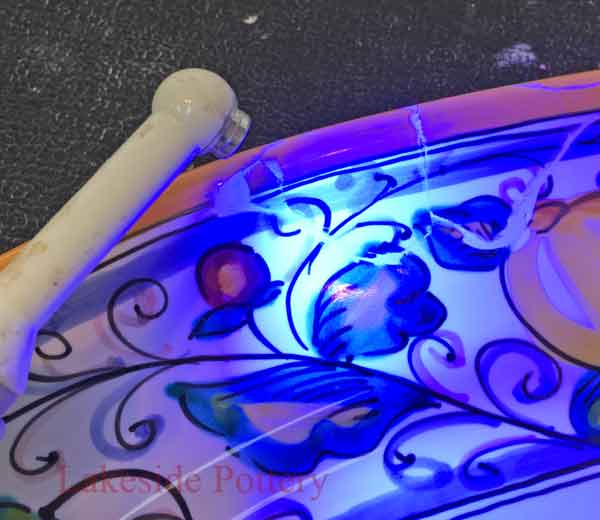

Inspect surface with UV light or a spot light for any surface defects
Inspect surface with UV light or a spotlight for any surface defects (cracks, pits, pumps, etc.)

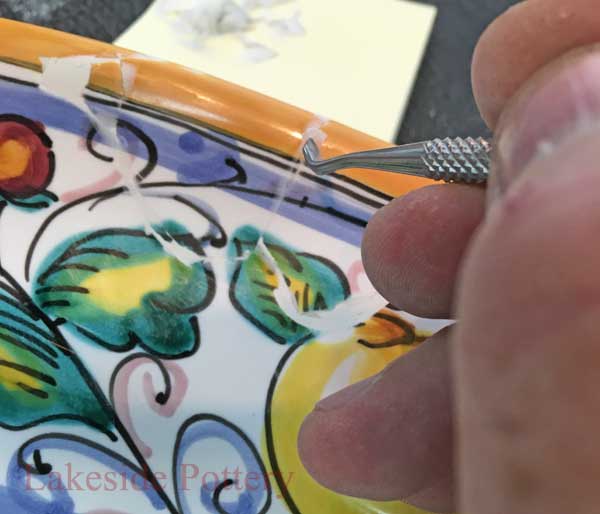

Fill the defects with PC-11 lightly
For seamless surface fill the defects with PC-11 lightly

Wait for filler to cure over night in warm area before sanding
Wait for filler second layer to cure in a warm room (see more above) before sanding

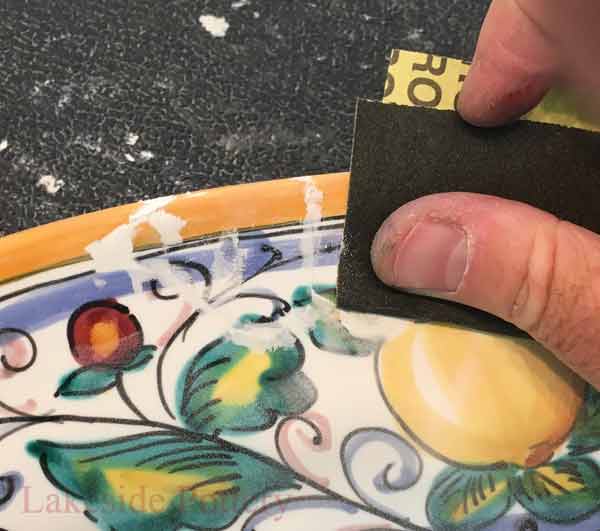

Sand second layer by hand with long strokes using grit 220, then grit 400 and finish with grit 3600.
Sand second layer by hand with long strokes using grit 220, then grit 400 and finish with grit 3600. It may be necessary to apply a third or fourth layer if UV / light close inspection reveals more surface defects

Wipe surface with alcohol for paint better bond
Wipe with alcohol for better paint bond

Painting and Glazing

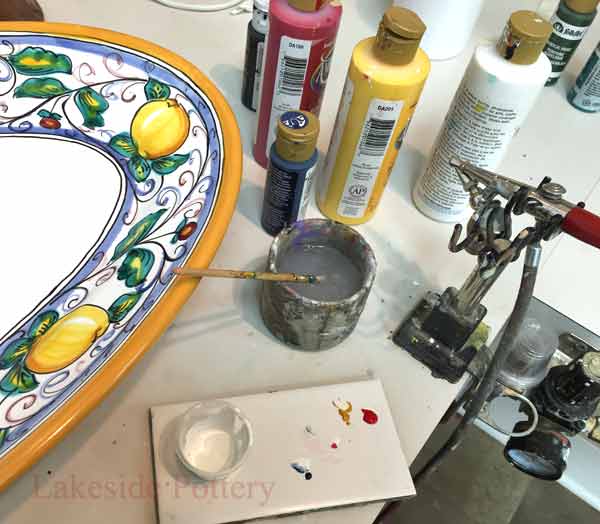

Mix acrylic paints to match background off-white color
Mix acrylic paints to match background off-white color

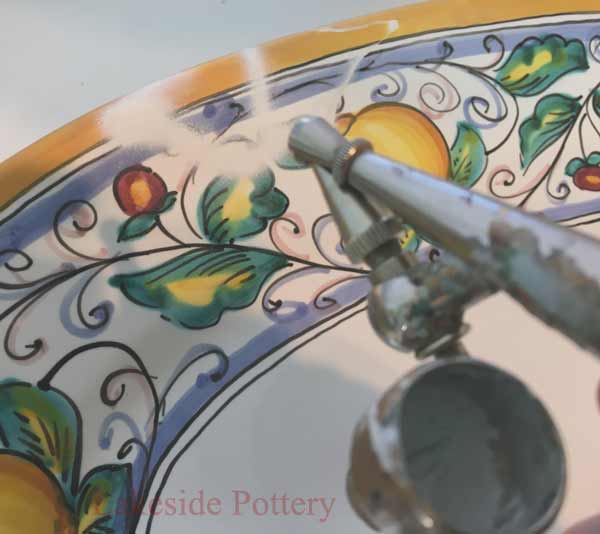

Airbrush over the repair line
Airbrush over the repair line and taper off for smooth color integration to original background glaze.

Painting over the repair line will erase painting details
Painting over the repair line will erase painting details which will be replenished later

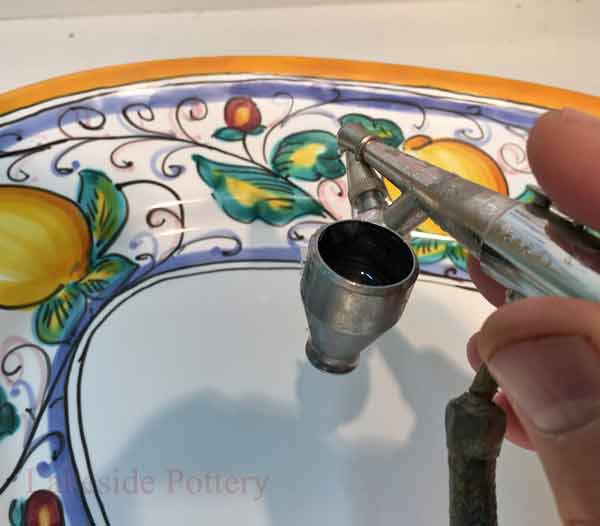

apply thin layer of cold glaze
Wait a day or two for the acrylic paint to dry well and apply thin layer of cold glaze to protect the applied the painted areas.

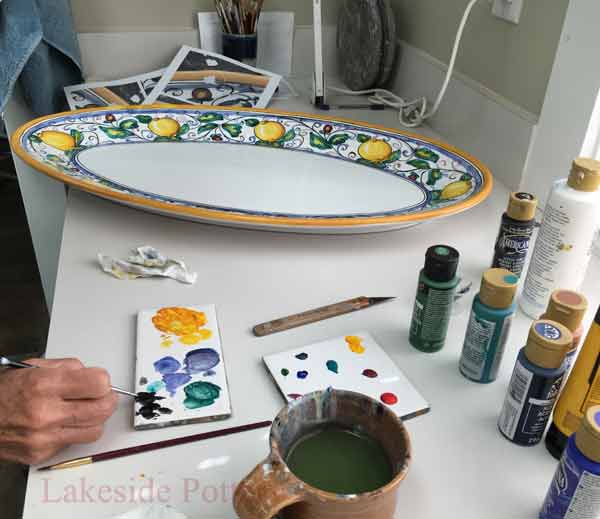

Mix acrylic paints to match to missing colors details
Mix acrylic paints to match to missing colors details

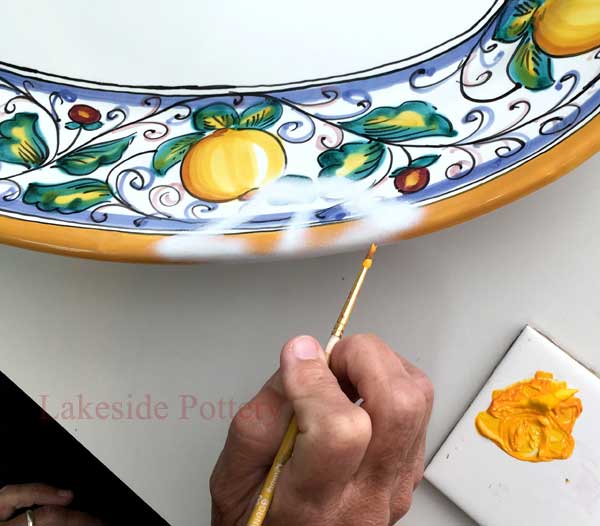

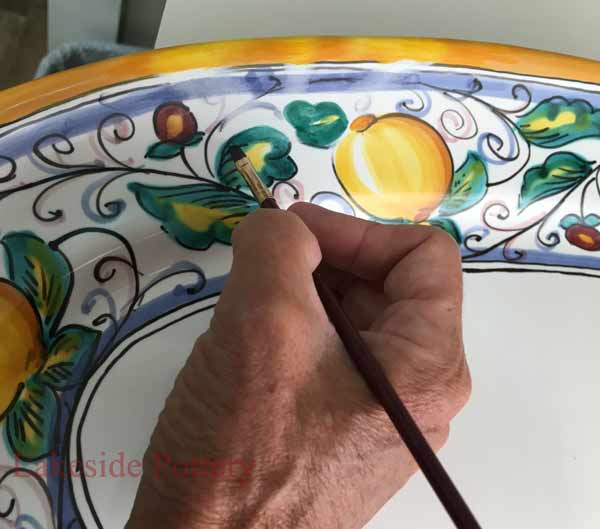

Use fine brushes to apply color
Use fine brushes to apply colors

For translucent effect, paint several coats of thinned paints
For translucent effect, paint several coats of thinned paints

apply black color last
In this example, apply black color last

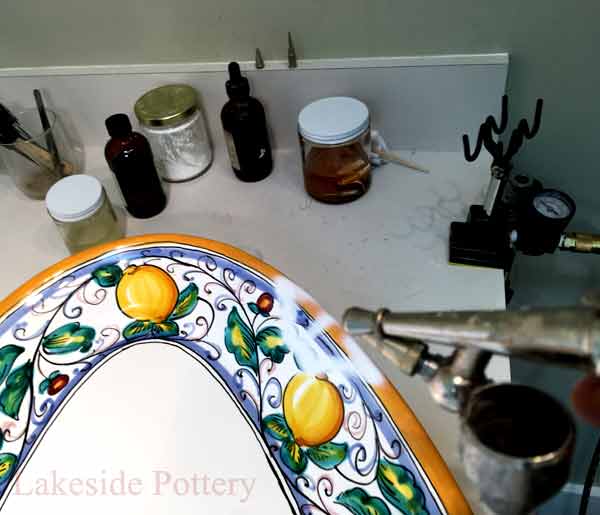

airbrush clear glaze
Wait for painting to properly dry (a couple of days) and airbrush clear glaze

Second layer of clear glaze may be required
A second layer of clear glaze may be required. Sand surface with a 3200 grit micro-mesh (after waiting a day or two for 1st layer curing), wipe dust off and reapply cold glaze

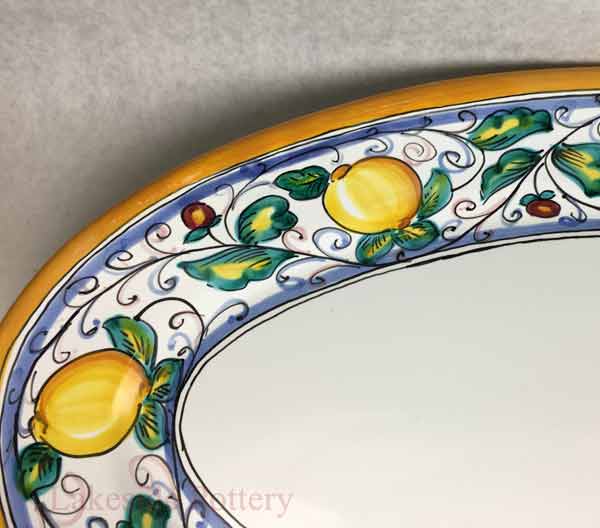

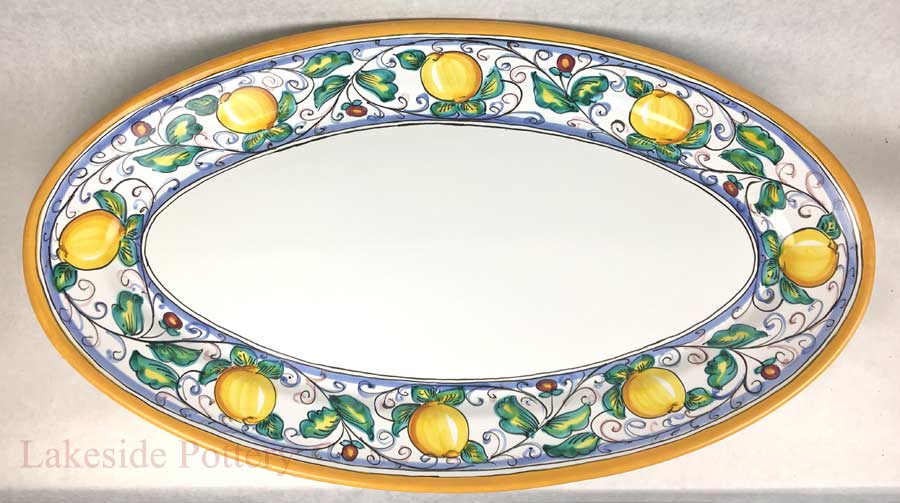

Platter ready for shipment
Platter ready for shipment

Video: Repair Lesson With All Steps
Removing old repair, Mending the broken segments, filling gaps, sanding filler, painting and glazing the repaired areas.


More Details

Choosing your adhesive
Specific kinds of adhesives are generally used to mend ceramics. We recommend clear, 5 minute setting two-part epoxy. There are cases where a slower setting epoxy will work better. In order to choose the correct adhesive for a ceramic repair, you must first identify the type of ceramic involved. Because an exact fit is essential in repairing ceramics, you must adjust the pieces precisely before the glue sets. Five-minute epoxies and instant glues might cure too fast and are not recommended if you need longer time to match and adjust a precise fit. We use different adhesives for different applications. For the purposes of this tutorial, we recommend more commercially available brands that are listed in our Where to Purchase Ceramic Repair material.

Preparing the surface
The most important step in repairing a broken ceramic is to make sure the pieces are clean. If the item has been fixed before, undo the old repair (see how to remove old adhesive lesson), or the new adhesive may not bond. Before handling the pieces, you may want to put on clean gloves to protect your hands from sharp edges. Clean the pieces with alcohol.

Applying the adhesive
Using a wooden stick, paper clip or a pin tool, apply glue to only one of the broken edges. Use only enough adhesive to cover the edge. Too little will leave gaps, resulting in a weak repair; too much will make it difficult to achieve a tight joint. Warming up the ceramic pieces to 110-140 degrees F will thin the epoxy, creating a better fit, but will result in a faster cure time. Quickly join the pieces together while applying light pressure squeezing extra glue out. Fill a container with plastic pebbles, rice, or sand which will hold the repaired piece in place while it cures. Avoid shifting the pieces; small particles may come loose, ruining the repair. Any glue that oozes from the joint can be removed with a rag and alcohol if excess epoxy is in the space where the next broken pieces need to fit, or later using a razor blade. You may use tweezers to apply small pieces.

Fixing an item with multiple breaks
If you have a piece of pottery, ceramic or porcelain that is broken into more than a couple of pieces, plan the sequence in which you will attach each piece to avoid being left with a final piece that cannot be easily attached. Numbering the pieces after a dry-run is important and will assist in the actual implementation. Let each joint cure before repairing the next one.

Filling in for missing pieces
We use different products and the choices are too numerous to list here. PC-11 filler is a very good option and is more commercially available. The key elements with fillers are:

A) Exceptional adhesion
B) Will not shrink while curing
C) Workable - can be drilled and sanded
D) Paintable
E) Water / oil proof
F) Will tolerate wide temperature range without shrinking or expanding. We let the filler epoxy cure at 140 degree F enabling the filler to cure very hard, which is optimal for sanding.

Painting / color touch up
If the repair lines are not acceptable to you, and a seamless repair is desired, the required skill is much greater. Color matching and re-creating an artist's work and style takes time. We use high end acrylic paints or coloring pigment powders and colored hardeners, mixed with the proper additives to create strength. And finally, it is essential to match the glaze sheen and the right light reflection to emulate the broken item's glaze affect as close as possible - See painting theory and detailed tutorial.
