Using Metal Pegs & Pins To Join Broken Pottery

Hundreds of years ago before the availability of adhesives, pottery was repaired with metal staples or rivets on particularly valuable pieces holding together the broken ceramic segments. Small holes were drilled in to the piece and then the staples are inserted. Remaining holes space were sometimes filled with organic glue or clay colored or painted to conceal the repair.

We often receive antique Japanese or Chinese vessels repaired with staples and are asked to convert them to a seamless repair. In each case, we attempt to convince the owner to keep the staple-repaired vessel as is to appreciate it's beauty and the skill required to join broken pottery at a time when adhesives were not available. When we do reverse the old repair, as I remove the old staples, I find myself saddened apologizing to the skilled person who skillfully brought the vessel back to life long before I was born. This page was created to shed some light on this extinct repair method, it's beauty and historical value with the hope that it remains as is.


There are cases today where pegs and pins are required even with a seamless repair, Some examples are shown at the end of this page.


The Last Staples Repair Person - China




Reversing Staple Repair Implementing a Seamless Repair

The antique Chinese below arrived for repair requiring to remove the old staples / rivets repairs and re-restore it seamlessly using current and modern process and materials.

This past imperfect but inventive repair lasted for hundreds of years and we truly appreciated the staples implementation and tried to persuade the owner to keep it the way it to preserve history. Unfortunately he insisted to proceed with a seamless repair and we had to remove the staples as shown below.

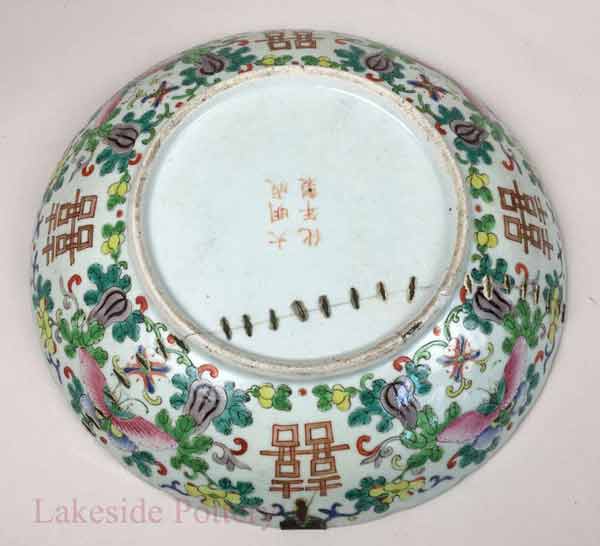

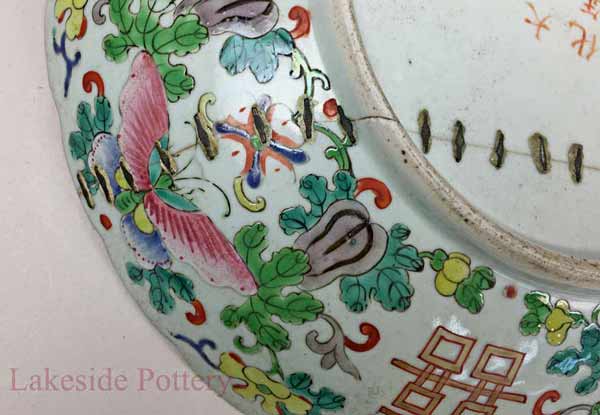

Pottery repair with staples

Stapled chinese antique bowl

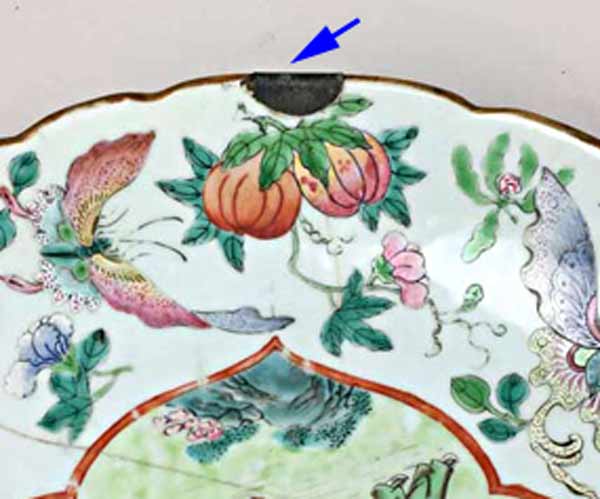

metal covering chipped bowl
Metal covering missing chip

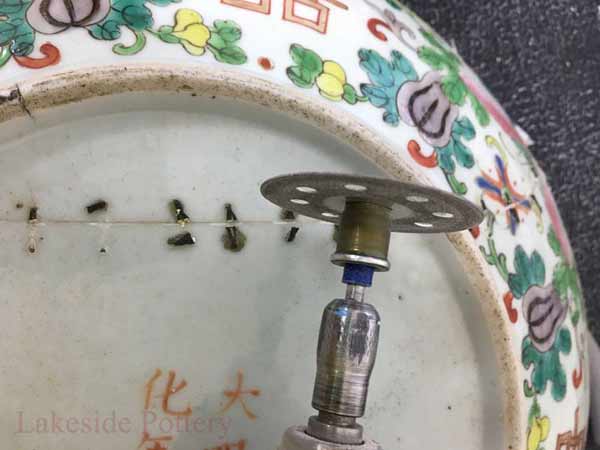

cutting staples with diamond dremel disc
Diamond disc cutting off staples

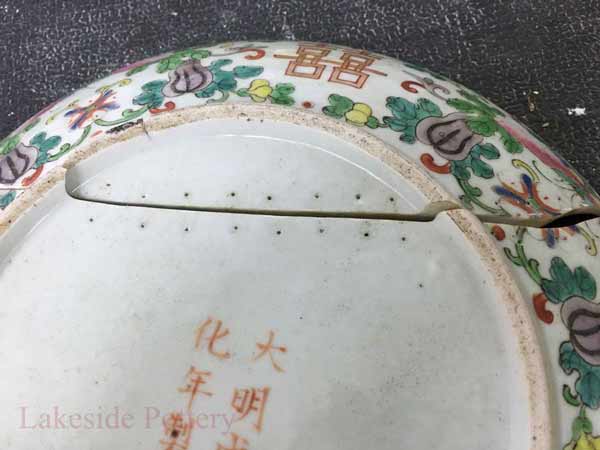

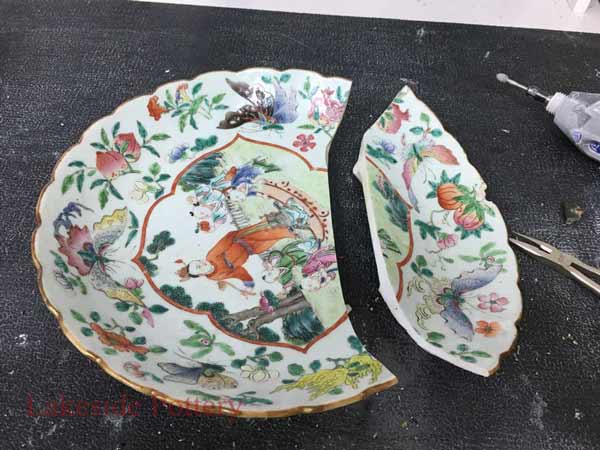

staples / rivets removed

staples / rivets removed

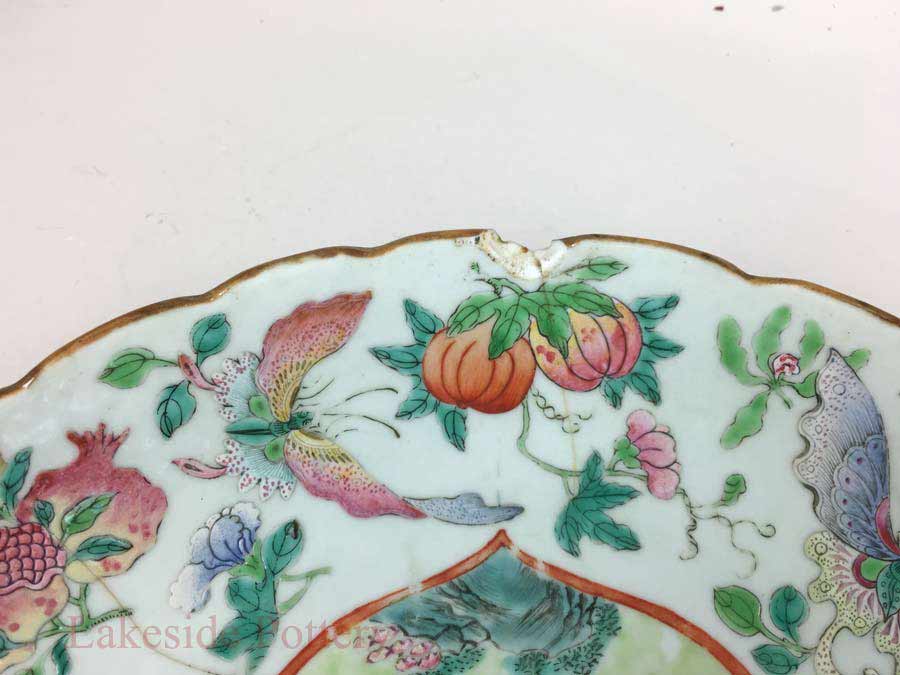

Metal removed from chip

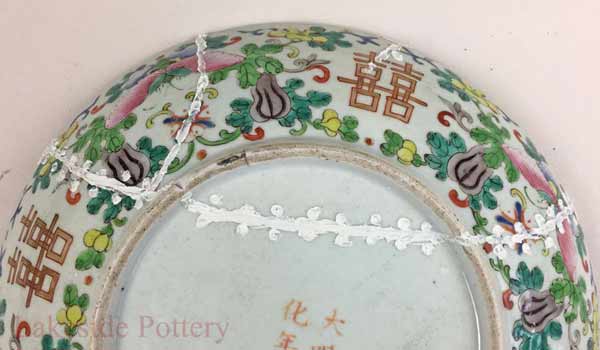

bowl cemented, breaklines and staple holes filled
Holes and break line filled up with PC11 epoxy filler

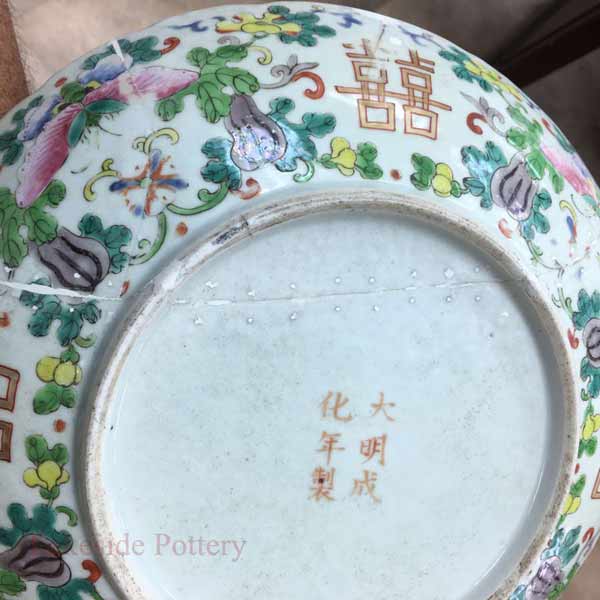

filler sanded
Filler sanded and polished - rear

filler sanded
Filler sanded and polish - front

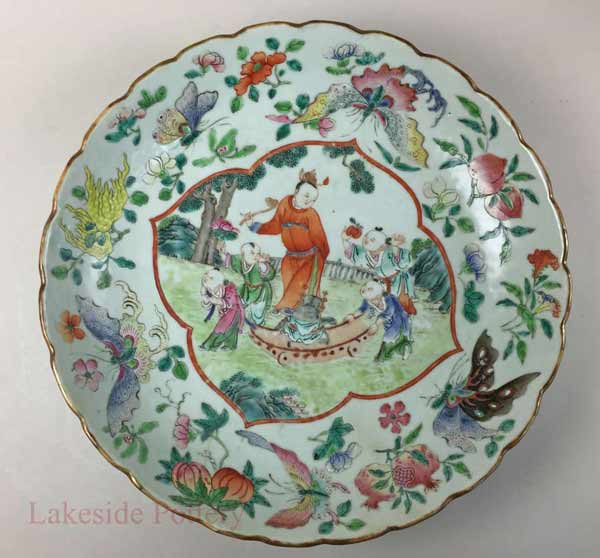

Bowl restored seamlessly
Seamless repair - front

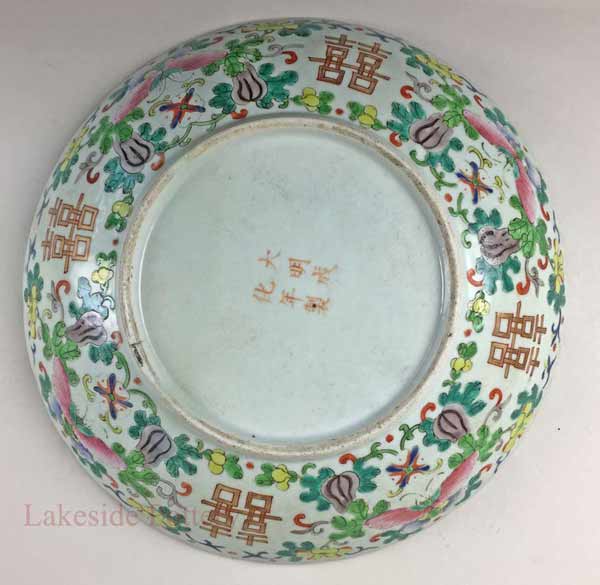

Bowl restored seamlessly
Seamless repair - rear (see repair step-by-step lesson)


Using Pegs & Pins When Adhesive is Insufficient

Repairing a statue, sculpture or figurine with a small cross-section requiring metal reinforcement using pins or pegs. This lesson will cover all the steps to complete seamless repairs including painting and glazing. ** This video showes some painting and glazing steps


Some other examples of using metal pegs, pins and rivets to enhance mechanical integrity of areas with narrow cross sections with heavy load bearing forces (e.g., handles). We have been using this technique in hundreds of cases in places where adhesives alone is not sufficient.

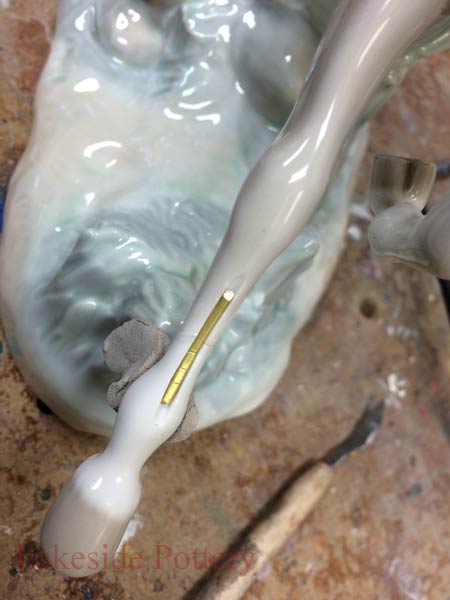

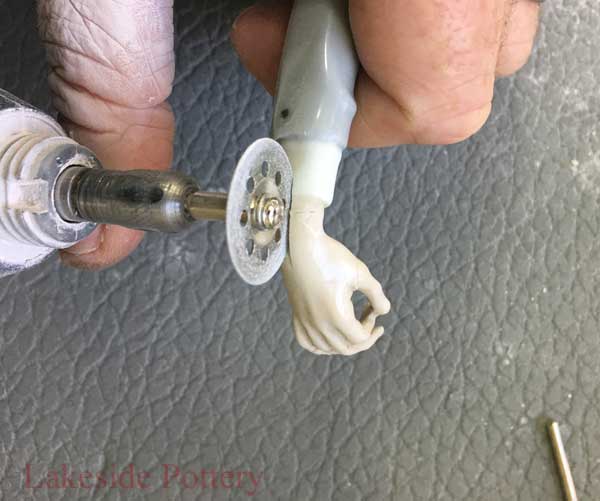

creating a slot across repair line

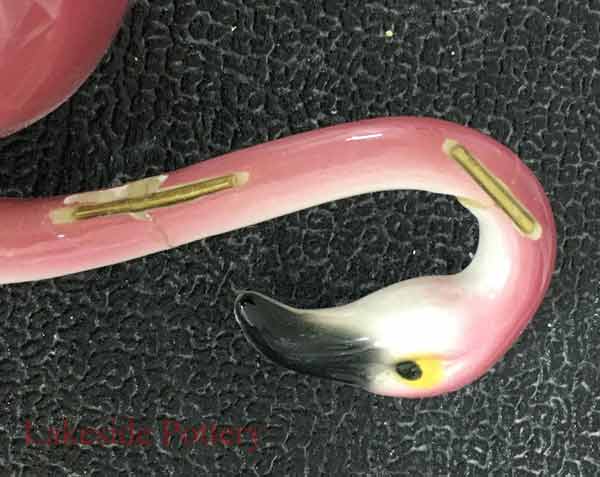

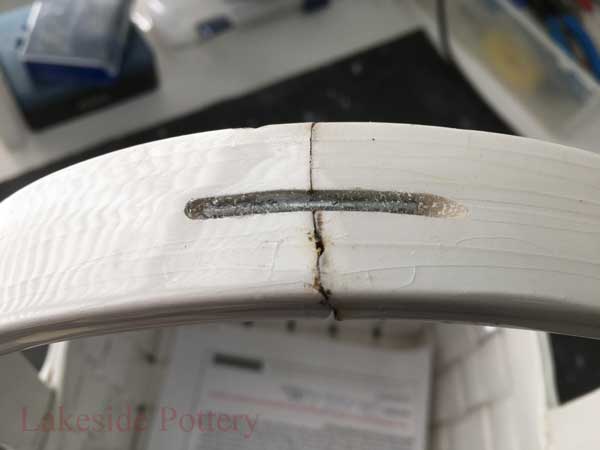

peg inserted and cemented

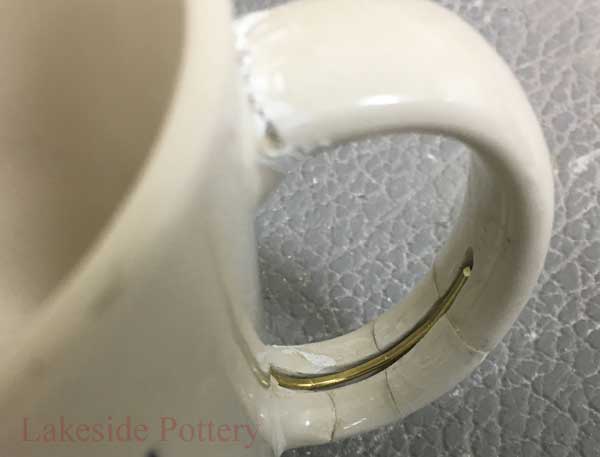

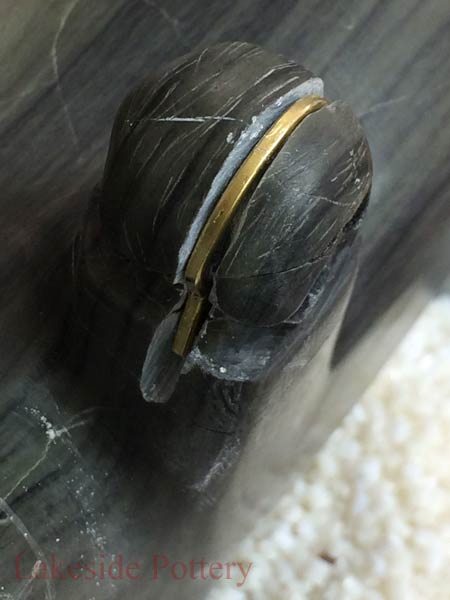

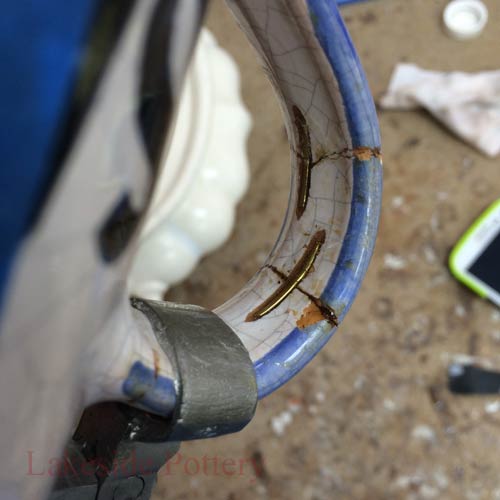

Long brass peg along multiple handle breaks
Long brass peg along multiple handle breaks

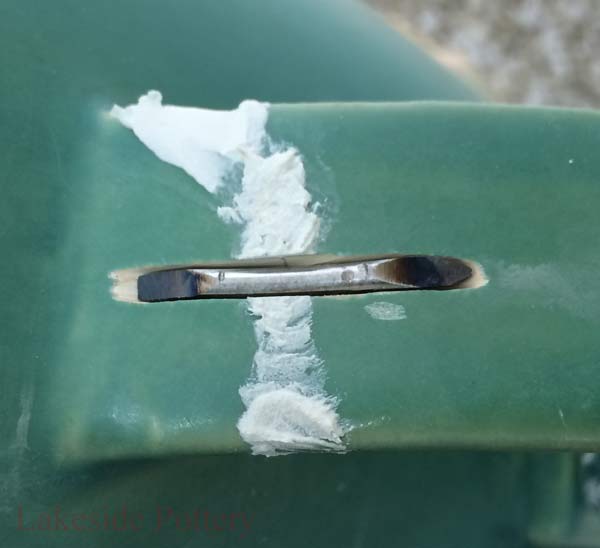

peg insertend in cemented pitcher handle

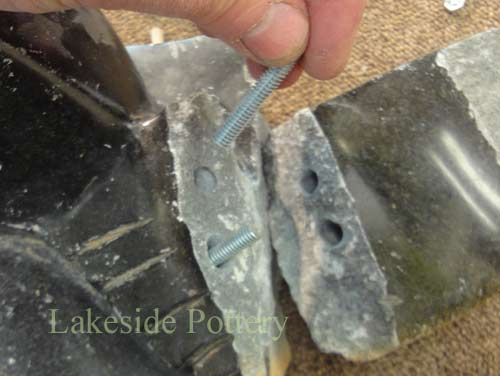

Fragmentes stone sculpture using metal insertion technique
Fragments stone sculpture using metal insertion technique

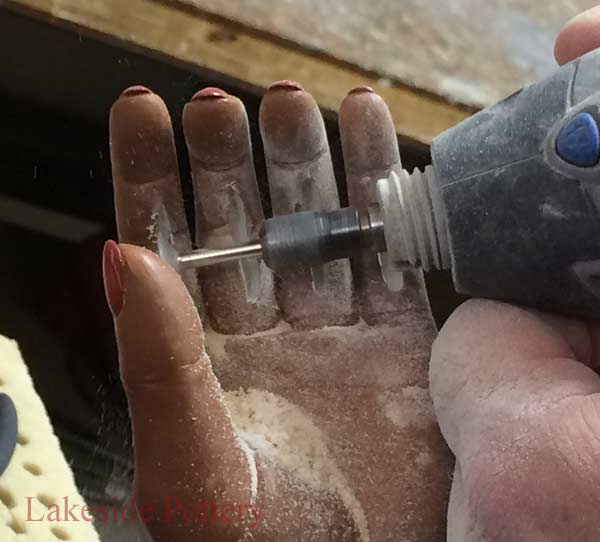

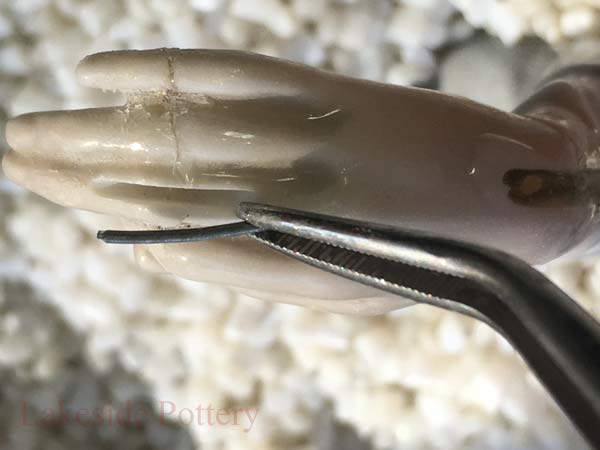

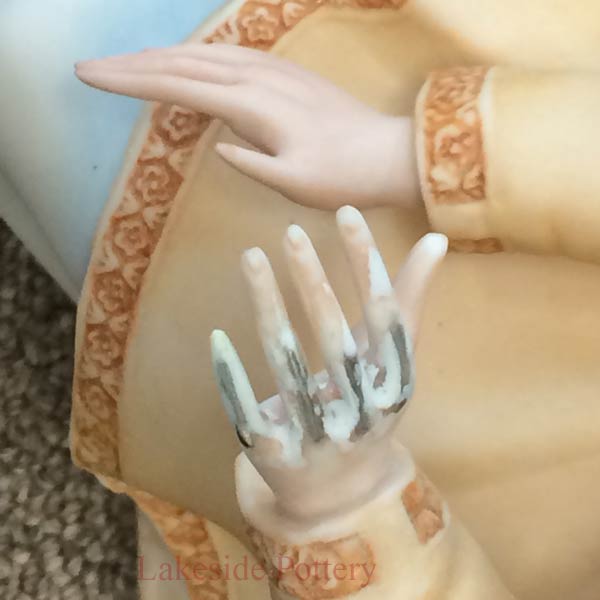

Four pegs inserted in fingers, filled and sanded ready for painting
Four pegs inserted in fingers, filled and sanded ready for painting

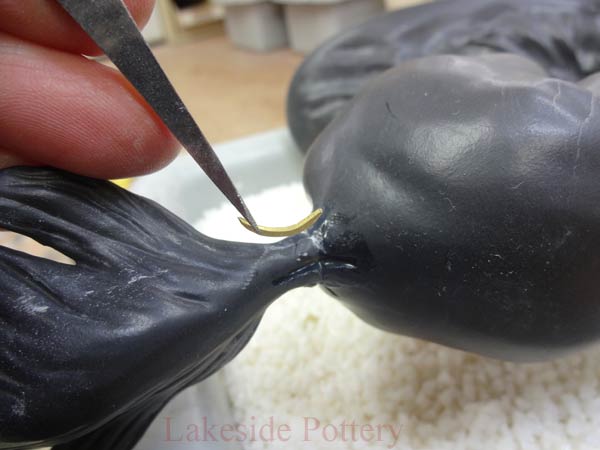

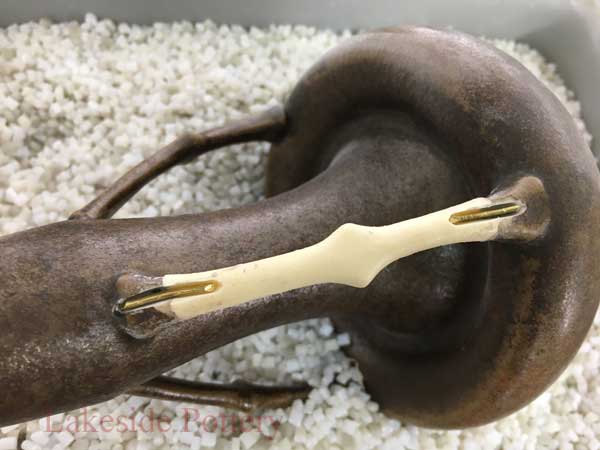

Three pegs inserted to proprly bond a horse tail to it's body
Three pegs inserted to properly bond a horse tail to it's body

steps repairing large stone sculpture
More details of how this large Shona sculpture was restored
